Licensed Sydney Pool Excavation

Pool Excavation Sydney

Concrete and fibreglass pool digs shaped to the pool builder's plan across Sydney. Tight access, sloping blocks and sandstone handled, spoil carted as we go, driveways and gardens protected, and the hole left ready for the shell.

Get a free quote
★★★★★
4.9 from happy Sydney customers
Request your free quote

No obligation, free site quote.

Licensed operators
Dial Before You Dig
Fully insured work
Local Sydney crew
Rock
Digs handled
Mini to 35t
Machine range
4.9★
Average rating
Free
Site quotes
Dig it to the shell

The hole has to fit the pool, not the other way round

A pool dig has less margin than most excavation. Over-dig the floor and the shell sits on fill that settles; under-dig a wall and the pool builder is back with hand tools. Fibreglass shells need the hole to match the mould within a few centimetres, and concrete pools need clean walls for the steel and shotcrete. Then there's getting the machine in and the spoil out through a side gate without wrecking the yard. The dig is set out from the pool builder's drawing, cut to depth in stages, checked as it goes, and the spoil handled so the site isn't buried in it.

Set out from the pool builder's drawing
Cut to shape and depth in stages, checked as we go
Driveway, gate and gardens protected
Spoil out as we dig, not stockpiled in the yard
At a glance

The pool excavation job, in short

Machine range
1.7 to 8t
Minis through the side gate, bigger where the block allows
Pool types
Concrete and fibreglass
Dug to the builder's shell drawing
Access
Side gates and tight yards
Some minis fit under a metre wide
Depth
Shallow to deep end
Steps and benches cut in
Rock
Sawn or broken
Sandstone under most eastern and northern yards
Spoil
Carted as we dig
Or kept on site if the landscaping needs it
Protection
Driveways and gardens
Boards, mats and mesh where the machine tracks
Handover
Trimmed to shell
Ready for the crane or the steel fixer
What's included

What pool excavation covers

Set-out
The pool outline and levels marked from the builder’s drawing before the machine starts.
Dig to shape
Floor, walls, steps and benches cut to the shell profile, checked with a laser as we go.
Tight access
Mini excavators through side gates and narrow passages, with the yard protected.
Rock
Sandstone sawn and broken where the dig goes through it, edges kept clean.
Spoil removal
Excess soil and rock loaded out and carted, with the route in and out protected.
Handover
Hole trimmed and clean for the fibreglass crane or the concrete crew, and backfill around the shell when you're ready.
Where it suits

Every pool we dig

From a plunge pool through a side gate to a full concrete lap pool on a sloping block.

Fibreglass

Fibreglass pools

Dug to match the shell mould so the crane can drop it straight in.

Concrete

Concrete pools

Over-dug to the engineer's dimensions for steel and shotcrete, walls kept clean.

Tight access

Plunge pools and tight access

Small pools in narrow yards where only a mini fits.

Sloping

Sloping blocks

Pools cut into a slope with a bench for the shell and a cut for the retaining wall.

Rebuilds

Knock-down rebuilds

Pool dug as part of the site works so it's done while the machines are already there.

In rock

Pools in rock

Sandstone sawn and broken to shape where the yard is rock.

Sandstone, clay, tight access

Pool digs built for Sydney yards

A Sydney pool dig is decided by two things before the shape: the ground and the gate. On the North Shore, the Northern Beaches and the Eastern Suburbs, sandstone is often within half a metre of the lawn and the dig turns into rock work with a saw and breaker. In the Hills, the west and the south-west, reactive clay cuts clean but moves with water, so the pool builder's engineer usually wants the base checked and any soft spots dealt with. Then there's access. Most Sydney pools go in through a side passage a metre or so wide, which means a small machine, careful protection of the driveway and gardens, and spoil out the same way it came in.

SandstoneReactive claySide-gate accessSloping blocksGroundwater
How it runs

First call to clean handover

Every job follows the same sequence, whether it's a single trench or a full site cut.

Services located 01

Assess & quote

Site visit, plan review and Dial Before You Dig. One clear quote covering dig, cartage and cleanup.

Access protected 02

Set out & protect

Levels marked, driveway and surfaces protected, machine sized to the site.

Spoil carted 03

Dig & cart

Dug to plan and level, spoil carted as we go so the site keeps moving.

To level 04

Trim & hand over

Site trimmed, tidy and to level, ready for the next trade.

A trench can be a day, a basement can be weeks. Dates come with the quote, not after.

What size suits your job

Right machine for your access

Excavators are sized in tonnes, and the size decides both what it can dig and whether it fits your block. We bring the one that suits the job, not whatever's parked up.

Most pool digs
Mini1 to 6t

Backyards, pools, trenches and tight access, some fit through a standard side gate.

Midi6 to 10t

Larger residential, driveways and small site cuts where a mini runs out of reach.

Standard10 to 20t

Full site cuts, basements and bulk residential or commercial digs.

Large20 to 35t+

Bulk earthworks, civil and big commercial jobs moving serious volume.

Not sure what'll fit? Access usually decides it, tell us the site and we'll match the machine.
The job explained

What a pool dig actually involves

A pool dig starts with the pool builder's drawing, not the backyard. The drawing gives the outline, the depths at each end, where the steps and benches go and how much over-dig the shell or the concrete needs. That's set out on the lawn with pegs, paint and string, and checked against the fences and the house so the pool ends up where the plan says and not a hand-width off the boundary.

Access comes next. Most Sydney pools go in through a side gate, so the machine is sized to fit and the route is protected: boards or mats over the driveway, garden beds covered, the gate taken off if it needs to be. The spoil comes out the same way, usually in a small dumper or by loading straight into a truck at the front, and it goes as the dig progresses so the yard doesn't fill up.

The dig itself works in layers. Topsoil off first, then down to the floor level in passes, keeping the walls straight and the corners tight. Fibreglass shells are unforgiving: the hole has to match the mould closely enough that the crane can lower it in and the backfill can lock it, so the floor and steps are checked with a laser against the shell drawing before anyone calls the crane. Concrete pools are over-dug to give room for the steel and the shotcrete, and the walls are kept clean so the steel fixer has something to work against.

Rock changes the day. Where the dig goes through sandstone, the edges are sawn and the bulk is broken out, which is slower and louder and is priced in when the site look finds it.

The finished hole is trimmed to level, the loose material is cleaned off the floor and the walls, and the site is left ready for the shell or the steel. Once the shell's in and the pool builder gives the word, the backfill goes in around it and the yard is brought back to level.

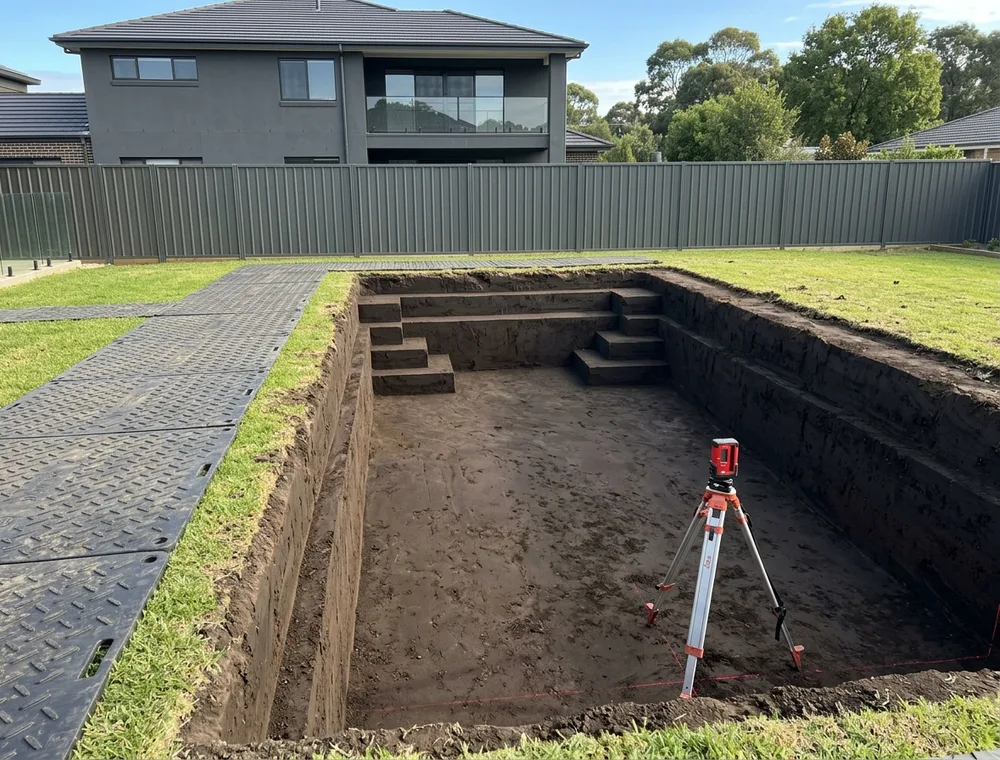

Finished pool excavation trimmed and ready for the shell
Recent work

Sites we've dug

Backyards to building sites, right across Sydney.
Penrith Site cut
Castle Hill Pool dig
Ryde Basement
Liverpool Civil
“Very easy to deal with.
Excellent communication”
Priya, Penrith
“Left the site spotless.” Dave, Castle Hill
“Would definitely recommend them!” Marcus, Ryde
“Great job thanks so much.” Lauren, Liverpool
“Very easy to deal with. Excellent communication” Priya, Penrith “Left the site spotless.” Dave, Castle Hill “Would definitely recommend them!” Marcus, Ryde “Great job thanks so much.” Lauren, Liverpool
“Very easy to deal with. Excellent communication” Priya, Penrith “Left the site spotless.” Dave, Castle Hill “Would definitely recommend them!” Marcus, Ryde “Great job thanks so much.” Lauren, Liverpool

Pool excavation questions, answered

How much does pool excavation cost in Sydney?

It depends on the pool size and depth, access for the machine, whether there’s rock and how much spoil has to be carted. A plunge pool through a side gate and a full concrete pool on a sloping block are very different jobs. Every dig gets a written quote after a site look with dig, cartage and access protection spelled out.

Do you work with my pool builder?

Yes. The dig is done from their drawing and to their levels, and we coordinate timing so the hole isn’t sitting open longer than it needs to before the shell or the steel arrives.

Can you get a machine through my side gate?

Almost always. Mini excavators fit through most side gates and some retract narrower for tight passages. The site look confirms the access and the machine.

What happens if there’s rock?

It’s very common in the north and east of Sydney. Rock is sawn at the edges and broken out in the middle, and if the site look finds it, it’s in the quote from the start.

Where does all the soil go?

Loaded out and carted as the dig goes, so the yard isn’t buried. If your landscaping plan needs fill, some can be kept on site. Cartage is set out in the quote.

Will you damage the lawn and driveway?

The route in and out is protected with boards, mats and covers, and the machine is sized to the access. Some marking on a lawn is normal and comes back; driveways and paving are protected so they don’t crack.

Do you backfill once the pool is in?

Yes, when the pool builder’s ready. Backfill around a fibreglass shell is done in stages with the pool filling at the same time, and the yard is brought back to level afterwards.
